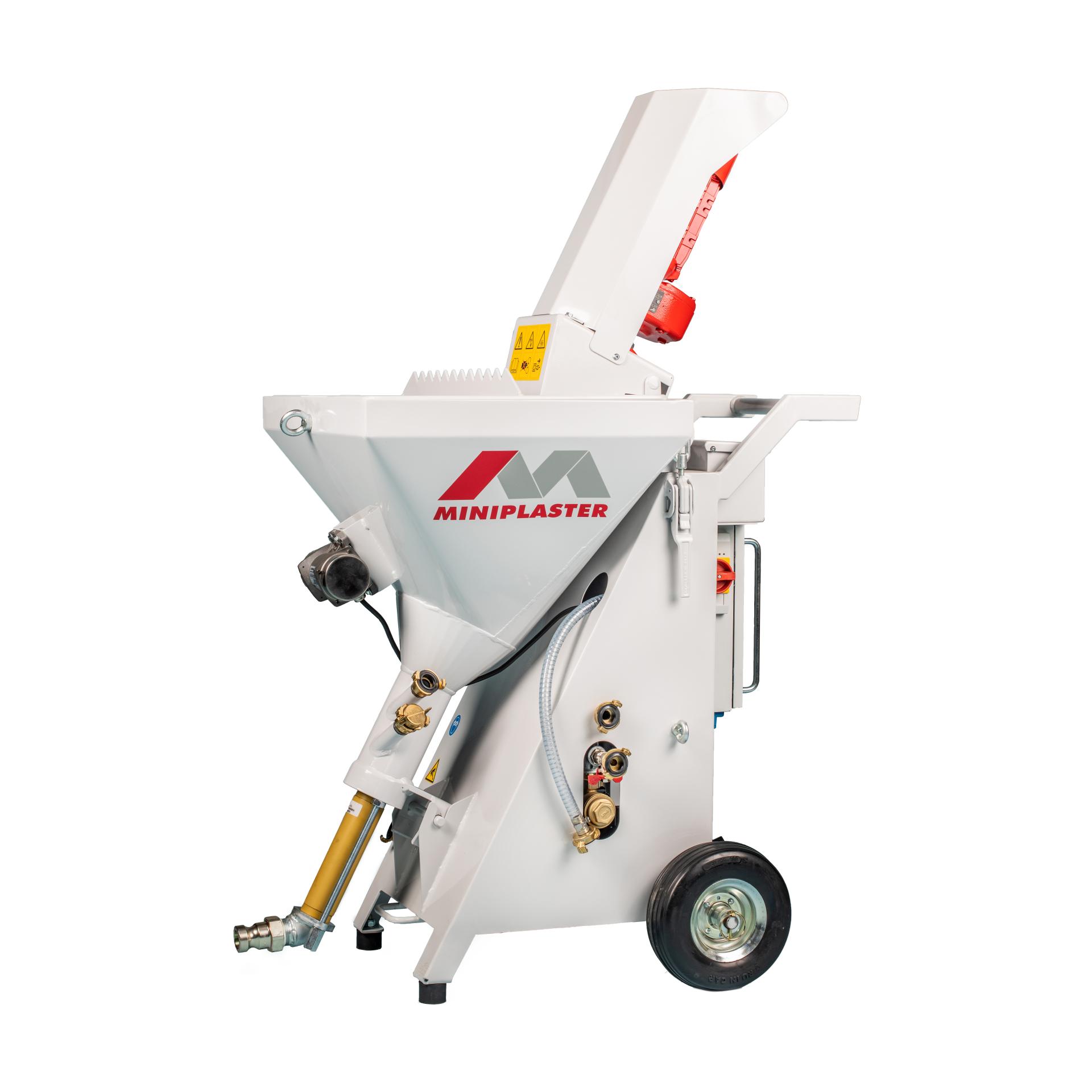

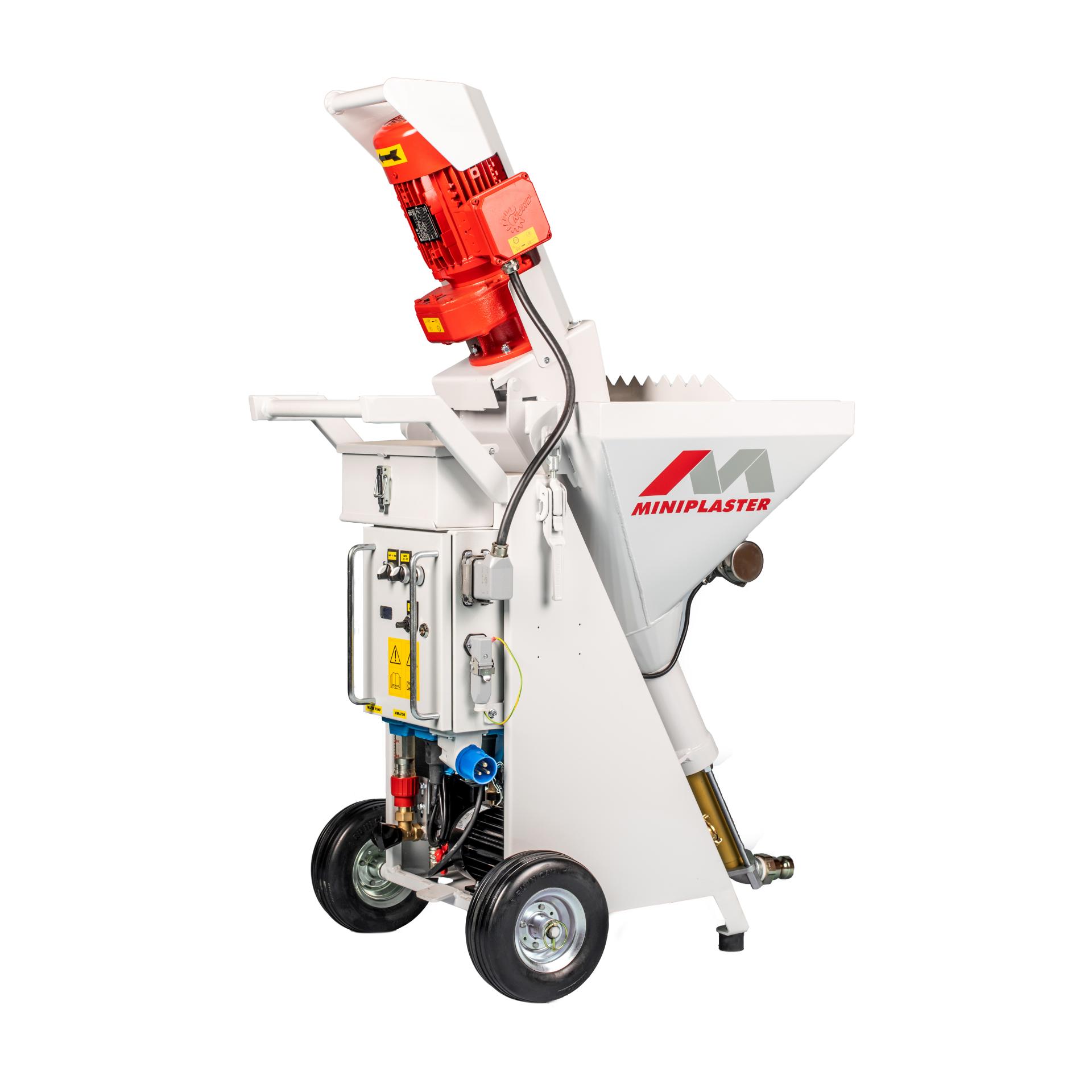

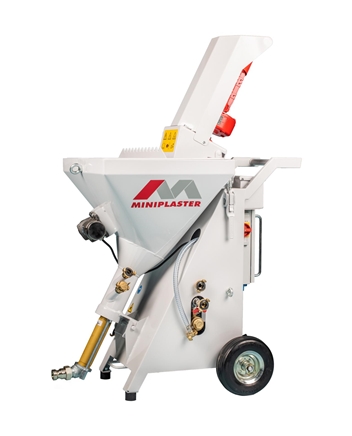

Miniplaster

Not only rehab and renovation works: small but versatile

Efficient rehab and renovating: with the Miniplaster construction machine it is possible to process mortar, plaster, gypsum and glue, as well as filler material and pre-mixed mortar and plaster. The machine is of multiple uses, and with its small dimensions a valuable support on any construction site. It is easy to dismount, thus making the transport from and to the building site a walk in the park!

Facts
Plastering machine for renovation areas, small construction sites and processing of fine plaster

Innovation
Single phase operation 230 V 2.2 kW, easy to dismount and transport

Features
  • For indoor and outdoor works
  • Processing glue as well as insulating plaster, indoor and outdoor plaster
  • Light-weight, easy to assemble and dismount
  • High-quality components
  • Single phase operation 230 V – 2.2 kW with frequency inverter for increased power in single phase mode
Conveying capacity*
 approx. 8-12 l/min (293 rpm)
Max range*
 approx. 10 m

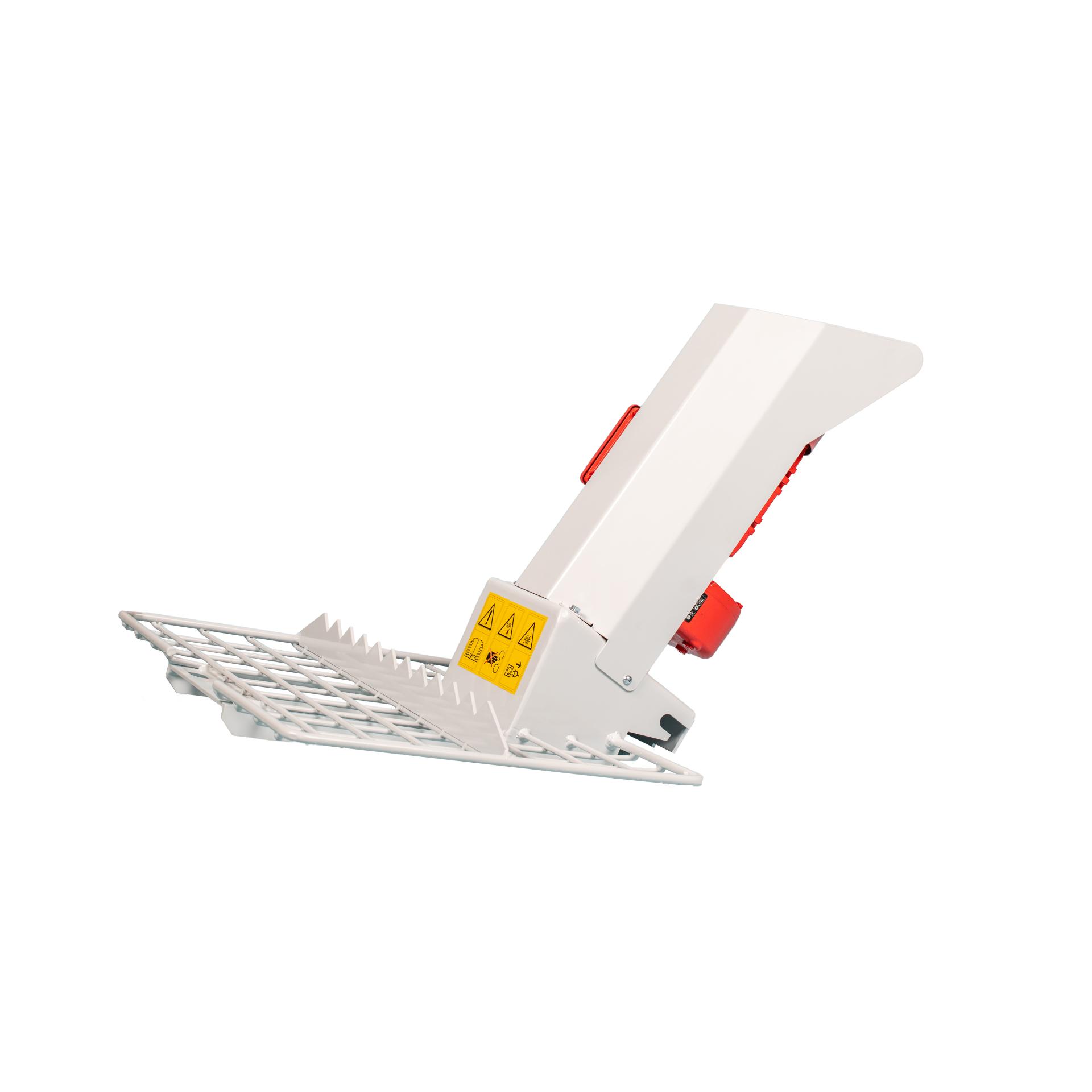

Gear motor
 2.2 kW
Capacità compressore  approx. 130 l/min
Transport pressure
 20 bar

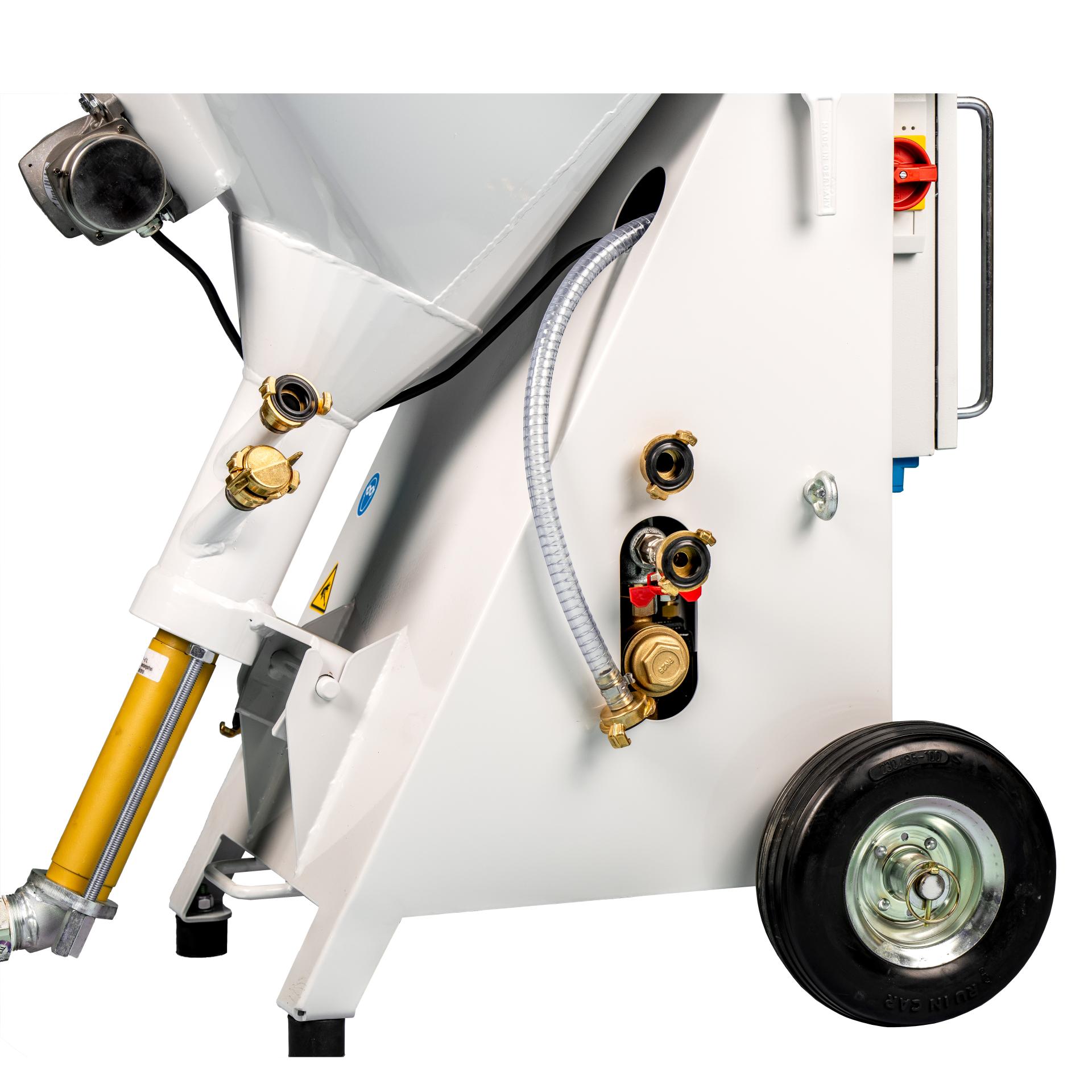

Min water pressure
 3 bar
Electrical drive  42 V

*Approximate values that may vary according to type and consistency of the material in use.

Width
600 mm
Length
870 mm
Height
1380 mm
Height of opening
900 mm
Total weight
120 kg
Screw pump set  B4-2L
Mortar hose  DN25, 10 m, 40 bar
Air hose ½′′
 10 m
Spray gun  DN25
Tool kit


loader
