Handyjet

Small conveying pump for a variety of mortar and plaster

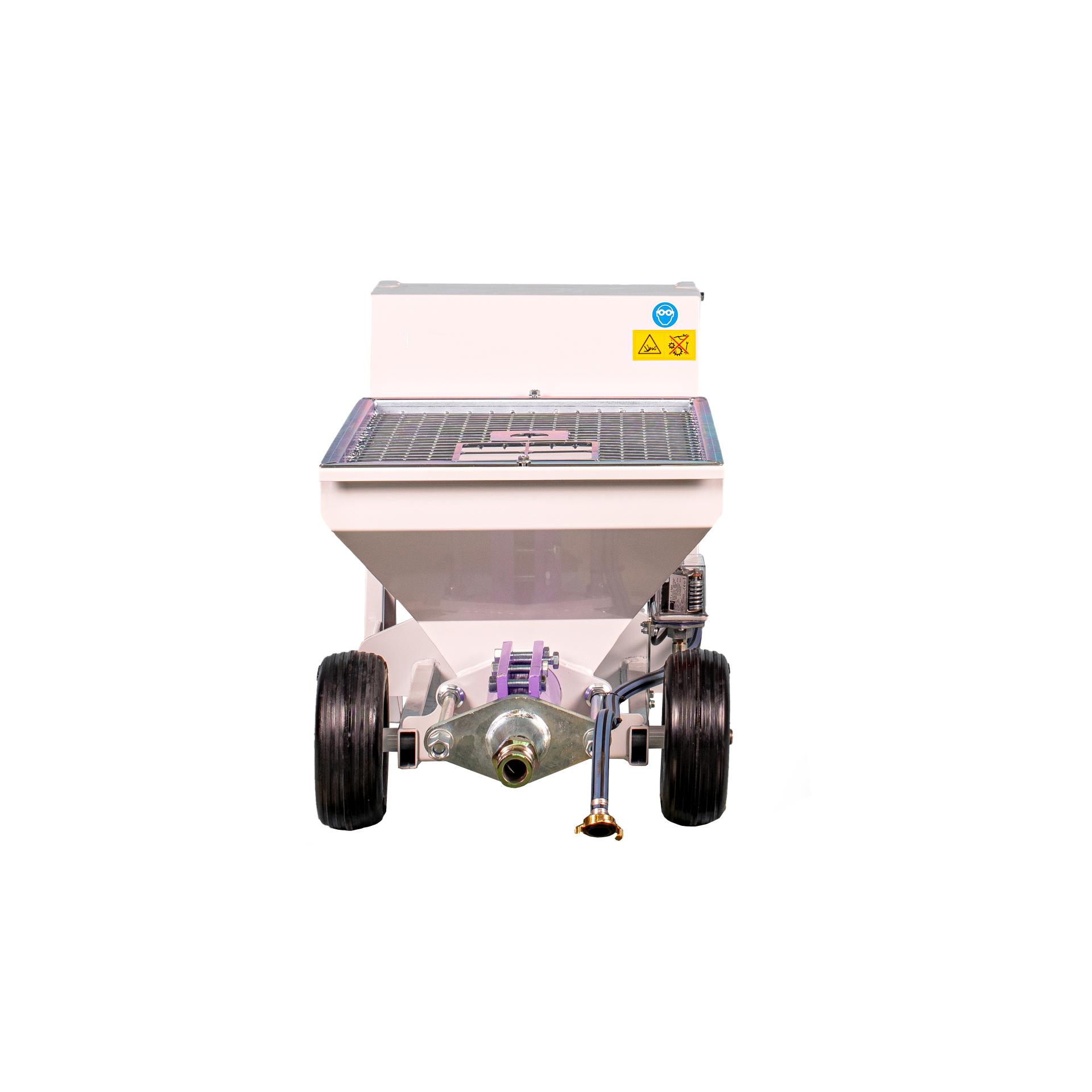

The conveying pump Handyjet seen from behind

Facts
Technical data
Dimensions and weight
Equipment and accessories

Facts
The conveying pump Handyjet can be applied for plastering, renovation, injection and pumping operations.

Innovation
230-Volt function

Features

Pumps spraying plaster, filling and anchor mortar, fire protection mortar, injection mortar
Can be equipped with a gear motor (2.2 kW – 3 kW – 5.5 kW)
Huge performance range
Available with air compressor on request

Gear motor	5.5 kW 400 V 50 Hz 3 kW 230 V 50 Hz (regulated by frequ. inverter) 2.2 kW 230 V 50 Hz (with condenser)
Conveying capacity (5.5 kW)*	approx. 30 l/min
Conveying capacity (3 kW)*	approx. 16 l/min
Conveying capacity (2.2 kW)*	approx. 10 l/min
Max range (5.5 kW)*	approx. 30 m
Max range (2.2 kW & 3 kW)*	approx. 10 m

*Approximate values that may vary according to type and consistency of the material in use.

Width

480 mm

Length

1400 mm

Height

640 mm

Total weight

94 kg

Screw pump set (5.5 kW)	D6-3
Screw pump set (3/2.2 kW)	D4 ECO
Mortar hose	D4 ECO
Power cable	10 m
Cavo corrente	25-40 m
Glue gun	optional
